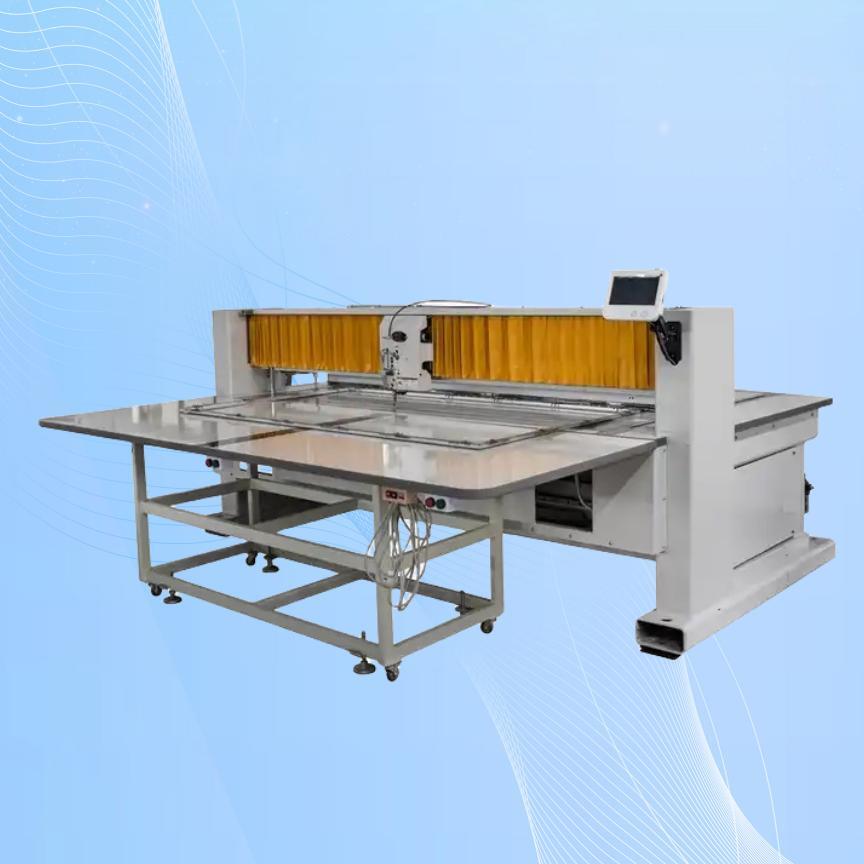

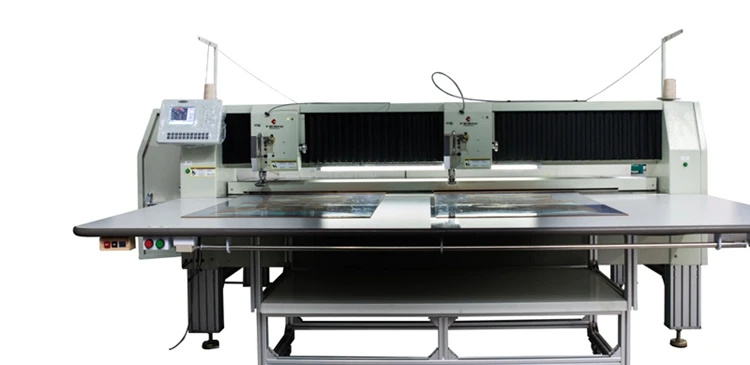

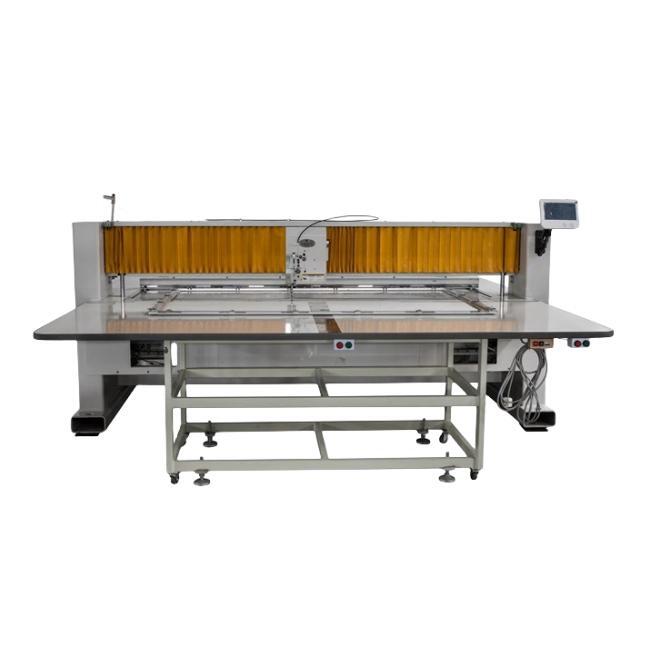

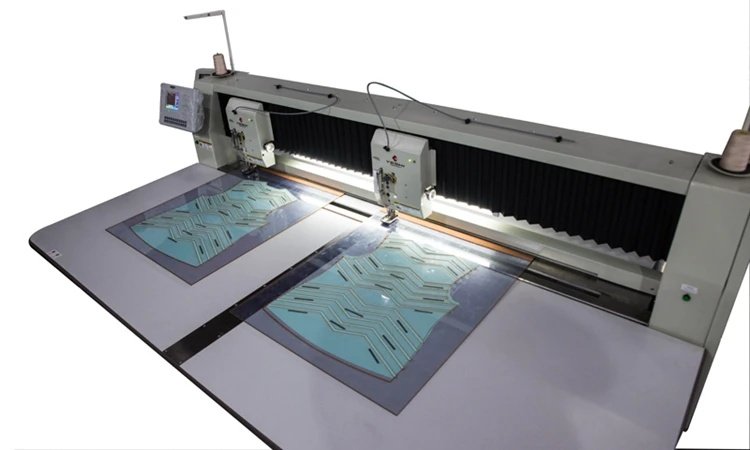

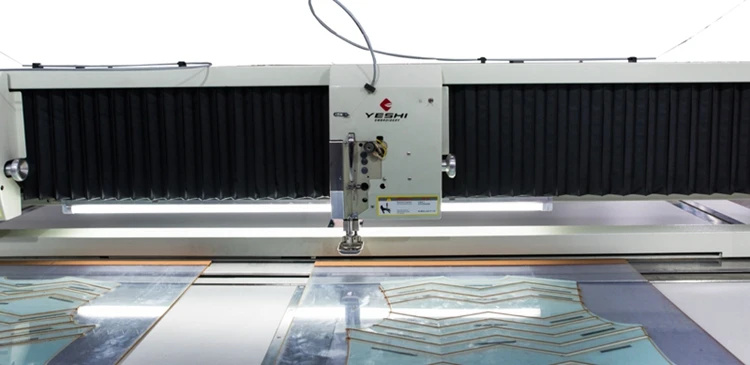

YS-L-8020 High Quality Flat-Bed Mechanical Configuration Automatic Sewing Machine CNC Long Arm Quilting Machine

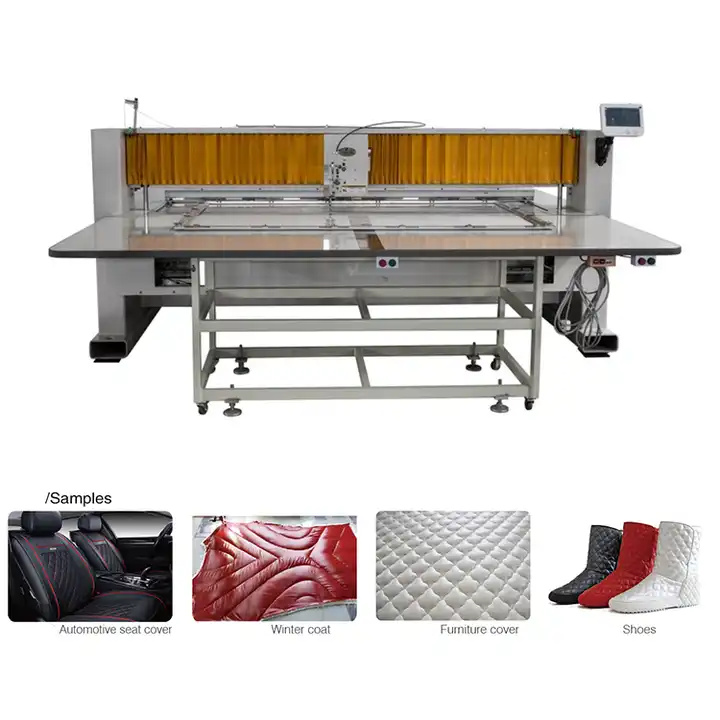

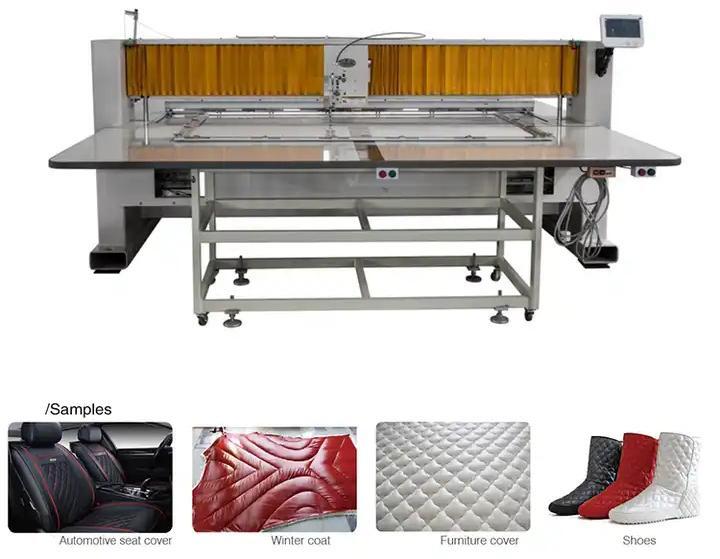

Automatic template sewing machine cnc long arm quilting machine is one of us high quality products. Our machines can be used to sew sofas, cushions, jackets and so on. Good use of sample making, perfect achieve fashion and personalized requirement.
Main Features
1) The spindle is double servo, the head and the shuttle box adopt the top and bottom servo separate control, the machine mechanical action is simple, the maintenance rate is low, the stability is high, the work runs smoothly, and the noise is low
2) Throwing material and thick material in and out convenient, sewing smoothly
3) Electronic presser foot (easy to make eiderdown, avoid the bird's Nest) from the main servo machinery, adjustable height can effectively prevent the bird's nest
4) Automatic pattern selection and sewing confirmation
5) The machine head can move, the sewing range is big, and the machine occupies a small area
6) No need to wait, realize left and right circular, continuous sewing, seamless docking, can greatly improve work efficiency
Technical parameters
| Model | YS-L-8020 |
| Spindle servo | Double servo drives (upper shaft & down shaft) |
| Max. stiching speed | 3000RPM |
| Hook | Double size hook |
| Head lifting height | 55mm |
| work clamp height | 60mm |
| Needle pitch | 0.05-10mm |
| Trimming way | Stepping motor trimmer |
| Maximum needle number | 100 million stitches (Max. 2 million stitches for one design) |
| Stitch type | Plain stitch |
| Max sewing thickness | 8mm-25mm |
| Embroidery frame drivers | Servo, Closed-loop stepping |
| Breakage detection mode | Spring lever detection |
