PRODUCT

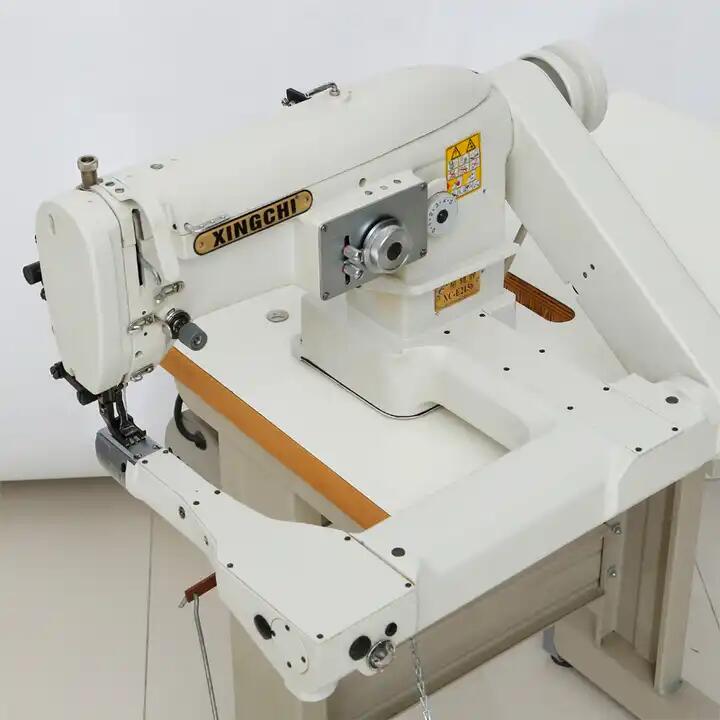

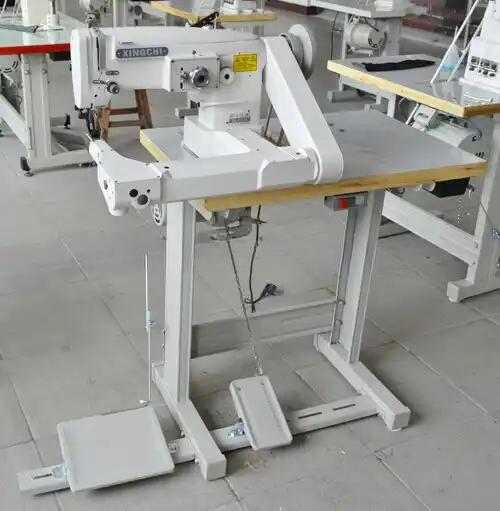

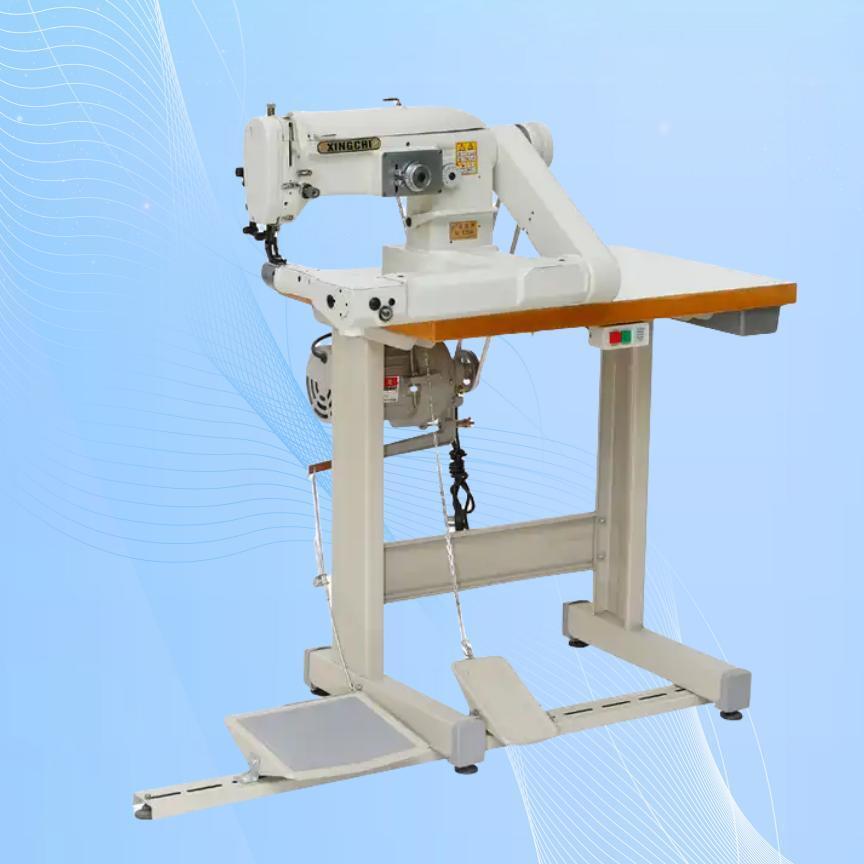

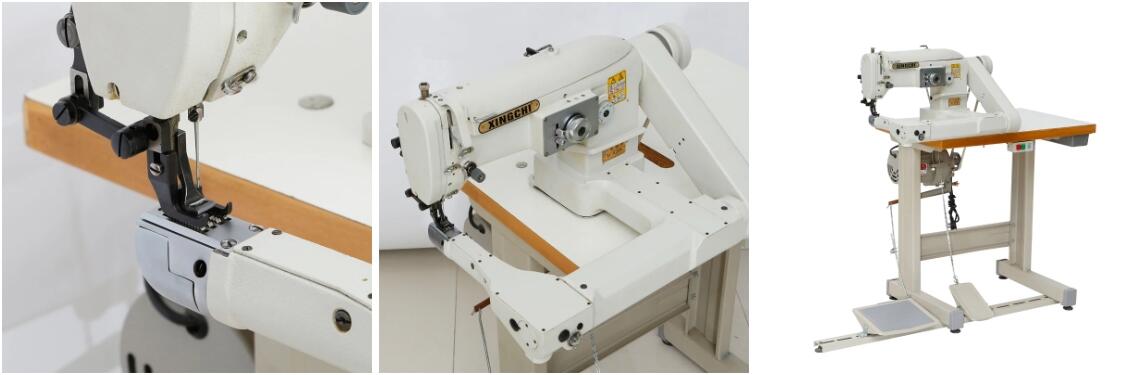

XC-E2156 The arm upper lower feed zigzag industrial sewing machine big hook
Order number XC-E2156
Processing and customization No
Item number XC-E2156
Types of sewing machines
Purpose sewing equipment
Degree of automation Fully automatic
Applicable thickness range thick material machine
Stitch type quilting machine
Applicable places: factory use
Works on heavy materials, cylindrical items, shoes, snow boots, cuffs, kneecaps, canvas, tarps, sportswear, sporting goods, any stretch material, leather goods and joining multiple pieces (seamless). Particularly suitable for difficult-to-machine materials such as smooth surfaces.
Drive form electric
Number of needles: double needle
Number of lines: double line
Feartures
1.Cylinder Dia:50mm; Cylinder length:230mm Designes convenient reverse feed lever on left forward side,easy for operating.
2.A new sealed ridge improvement,which prevents oil spilling completely.

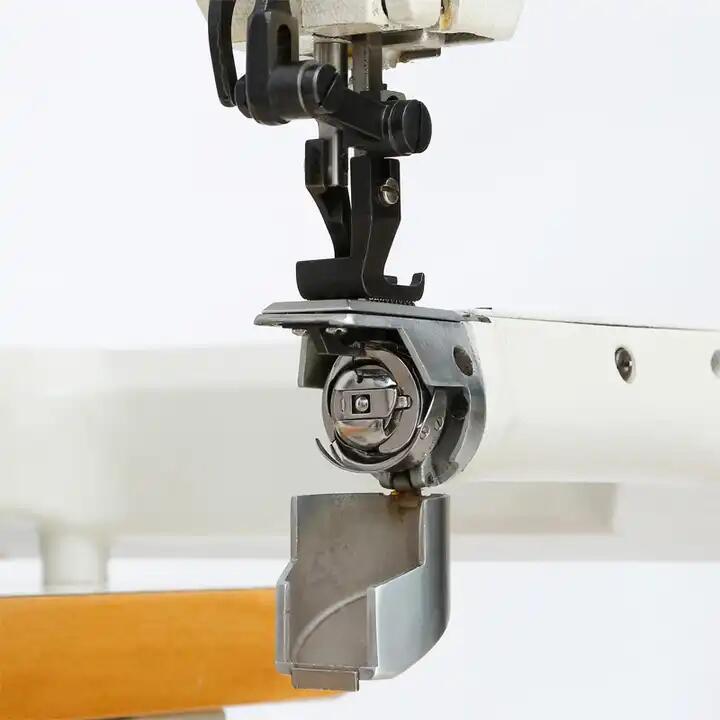

3.Graduates dial for feed adjustment and reverse feed with spring return,both of them are earily operated. Adopted large hool,the winding volume of lower thread is increased and due to this feature,the frequency of lower thread replacement is minimized.
4.Aotomatic high speed lubricating system,mechanical parts of sewing shuttle race are automatically lubricated by pipelines,it works for a large amount of time,which can improve the sewing effiency,and has high durability as well as long operating life.
Key attributes
| Applicable Industries | zig zag sewing machine cnc sewing machine for sale |
| Stitch Formation | Lock Stitch |
| Key Selling Points | High-accuracy |
| Power | 2P 400W |

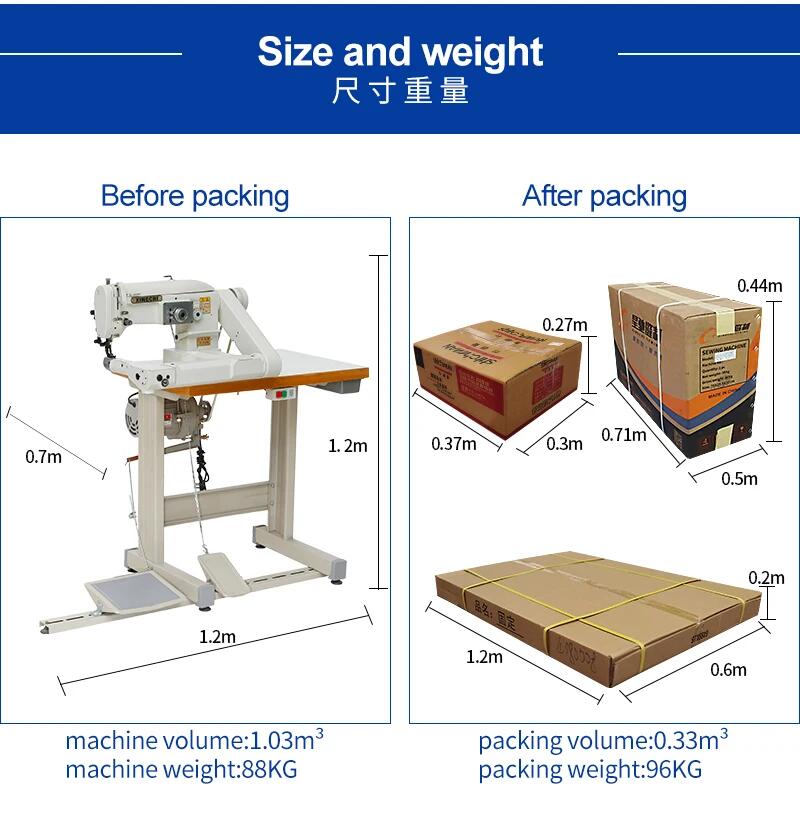

| Overall Dimensions | 0.17 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| needle | DPX 1714#-22# |

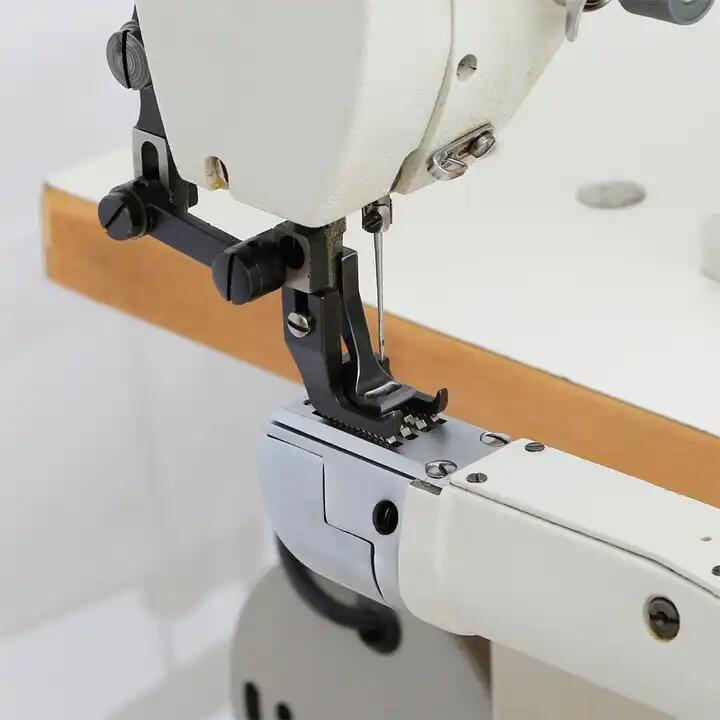

| height of presser foot | 9-13mm |
| Application | shoes,snow boots,cuffs,kneecaps,canvas |
| Voltage | 220V |
Related product specification
| Model | XC-E2156 | XC-2156 | XC-2150H | XC-2150M |
Press foot |
Walking foot double press foot feed off arm |
Feed off arm single press foo |
High post bed walking press foot |
Cylinder bed walking press foot |
| Applicatio | shoes,snow boots,cuffs, kneecaps canvas |
shoes,snow boots cuffs,kneecaps canvas |
thick material:Mat hat leathe goods etc |
sport shoes,bag, eather goods etc |
| Needle qty | single needle | Single needle | single needle | Single needle |
| Thread type (available for thick thread |
Nylon thread | Cotton thread Nylon threaa |
nylon thread | Nylon thread |
| speed | 1200rpm | 1200rpm | 1600rpm | 1700rpm |
| Stitching length | 10mm | 10mm | 8mm | 8 mm |
| needle type | DP*1718-22# | DP*1718-22# | DP*1718-22# | DP*1718-22# |
| Hook type | Rotary Hook | Rotary Hook | Rotary Hook/Vertica |
Rotary Hook/Vertical |
| Power | 220V | 220V | 220V | 220V |
